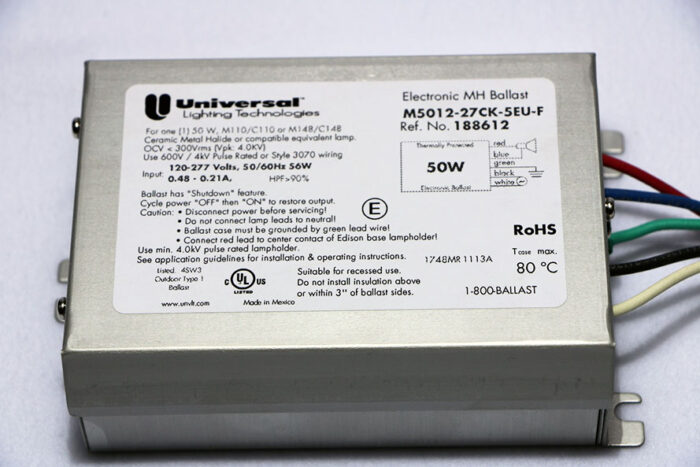

Universal 50 Watt M5012-27CK-5EU-F

Code: 188612

Uninversal Electronic Low Frequency Square Wave Ballast for 50W “enclosed rated” Metal Halide Lamps

Discontinued Item    We stock & ship Advance IMH50GLFM equal

Spec sheet: M5012-27CK-5EU-F

  • 120-277V  50/60Hz
  • Mounting type feet- side lead exit
  • Constant power regulation
  • Universal input voltage
  • High power factor
  • Low harmonic distortion
  • Standard size and lightweight
  • Min -15ºC to Max 80ºC case temperature
  • UL Outdoor Type 1
  • FCC – Meets FCC Part 18C for EMI & RFI



Available on backorder

Available on backorder



Code: 913701223602

Advance IMH-50-G-LFM – 50 Watt – Pulse Start – Electronic Metal Halide Ballast

Spec sheet: IMH50GLFM spec

ANSI C193/M110 – 120/277 Volt – Power Factor 90% – Max. Temp. Rating 194 Deg. F – Side Leads With Mounting Feet

Low frequency electronic HID ballasts such as the Philips Advance e-Vision line
constantly measure and adjust the wattage, optimizing delivery of the ceramic
lamps’ superior color properties. This makes ceramic metal halide operated by eVision ballasts the premier choice for many applications previously illuminated by
either tungsten halogen or incandescent sources, such as retail lighting.

Additional information

Weight .57 lbs
Dimensions 14.0 × 9.2 × 3.99 cm
